49 JP02 001
Adjustable wrench
49 B032 317
Bearing & oil seal remover
49 T028 301
Dust boot installer
STEERING GEAR AND LINKAGE DISASSEMBLY
id061300801800
Special Service Tool (SST)
|
49 JP02 001
Adjustable wrench
|
|
49 B032 317
Bearing & oil seal remover
|
|
49 T028 301
Dust boot installer
|
|
1. Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the figure.

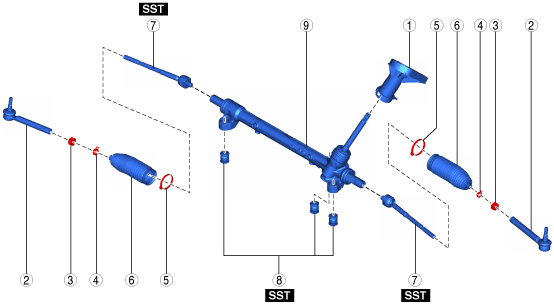

L.H.D.
ac9uuw00006220
|

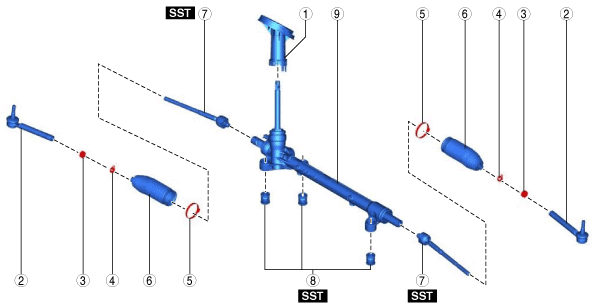

R.H.D.
ac9wzw00003313
|
|
1
|
Dust cover
|
|
2
|
Tie-rod end
(See Tie-rod End Disassembly Note.)
|
|
3
|
Locknut
|
|
4
|
Boot clamp
|
|
5
|
Boot band
(See Boot Band Disassembly Note .)
|
|
6
|
Boot
|
|
7
|
Tie rod
(See Tie Rod Disassembly Note.)
|
|
8
|
Mounting rubber
|
|
9
|
Steering gear
|
Tie-rod End Disassembly Note

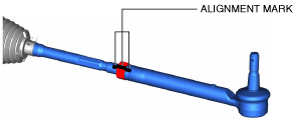

1. Place alignment marks as shown in the figure for proper installation.
ac9uuw00006221
|

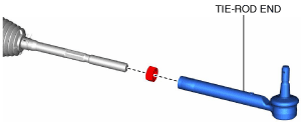

2. Remove the tie-rod end.
ac9uuw00006222
|
Boot Band Disassembly Note
1. Insert a flathead screwdriver into the crimped part of the boot band, expand the crimped part and remove the boot band.
ac5wzw00001035
|
Tie Rod Disassembly Note

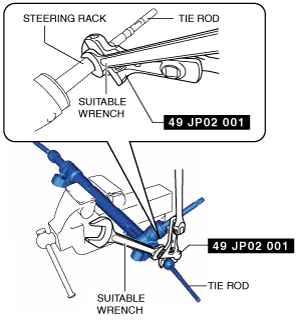

1. Lock the steering rack end (pinion gear side) against rotation using a wrench and remove the tie rod using the SST.
ac9uuw00006223
|
Mounting Rubber Disassembly Note
1. Remove the mounting rubber from the gear housing using the SSTs and a press.
ac9uuw00006224
|
