DTC B116A:13 [MAZDA ERA-GLONASS CONTROL MODULE]

id0902r6059200

Description	Microphone circuit malfunction
Detection condition	• The Mazda ERA-GLONASS control module detected an open circuit in the microphone circuit for 5 seconds with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

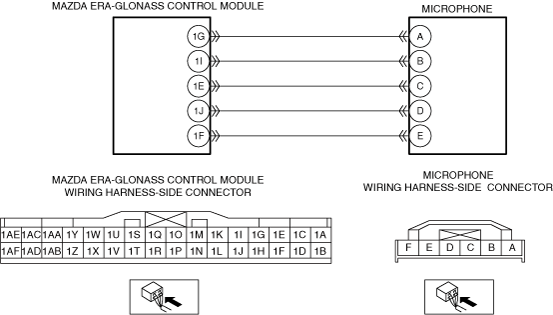

Possible cause	• Microphone connector or terminal malfunction • Mazda ERA-GLONASS control module connector or terminal malfunction • Open circuit in wiring harness between Mazda ERA-GLONASS control module terminal 1F and microphone terminal E. • Microphone malfunction • Mazda ERA-GLONASS control module malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT MICROPHONE CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the microphone connector. (See MICROPHONE REMOVAL/INSTALLATION.) • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
1		No	Repair or replace the connector, then go to Step 5.
2	INSPECT MAZDA ERA-GLONASS CONTROL MODULE CONNECTOR CONDITION • Disconnect the Mazda ERA-GLONASS control module connector. (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.) • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 5.
3	INSPECT MICROPHONE CIRCUIT FOR OPEN CIRCUIT • Verify that the microphone and Mazda ERA-GLONASS control module connectors are disconnected. • Inspect for continuity between Mazda ERA-GLONASS control module terminal 1F (wiring harness-side) and microphone terminal E (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
3		No	Refer to the wiring diagram and verify if there is a common connector between Mazda ERA-GLONASS control module terminal 1F and microphone terminal E. If there is a common connector: • Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location. • Repair or replace the malfunctioning location. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to Step 5.
4	PERFORM DTC INSPECTION AND VERIFY IF MALFUNCTIONING LOCATION IS MICROPHONE • Always reconnect all disconnected connectors. • Reconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the Mazda ERA-GLONASS control module using the M-MDS. (See CLEARING DTC [MAZDA ERA-GLONASS CONTROL MODULE]) • Switch the ignition ON (engine off or on) and wait for 25 s or more. • Perform the DTC inspection for the Mazda ERA-GLONASS control module using the M-MDS. (See DTC INSPECTION [MAZDA ERA-GLONASS CONTROL MODULE]) • Is the same DTC displayed?	Yes	Replace the microphone, then go to the next step. (See MICROPHONE REMOVAL/INSTALLATION.)
4		No	Go to the next step.
5	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Clear the DTC for the Mazda ERA-GLONASS control module using the M-MDS. (See CLEARING DTC [MAZDA ERA-GLONASS CONTROL MODULE]) • Switch the ignition ON (engine off or on) and wait for 25 s or more. • Perform the DTC inspection for the Mazda ERA-GLONASS control module using the M-MDS. (See DTC INSPECTION [MAZDA ERA-GLONASS CONTROL MODULE]) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the Mazda ERA-GLONASS control module. (See MAZDA ERA-GLONASS CONTROL MODULE REMOVAL/INSTALLATION.) Go to the next step.
5		No	Go to the next step.
6	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [MAZDA ERA-GLONASS CONTROL MODULE])
6		No	DTC troubleshooting completed.
