ANTENNA FEEDER NO.2 INSPECTION
id092000812500
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (4) Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
-
- (5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (6) Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
-
- (7) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
-
- (8) Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
-
- (9) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
-
- (10) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (11) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (12) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (13) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (14) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (15) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (16) Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)
-
- (17) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (18) Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
-
- (19) Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION.)
-
- (20) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (21) Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (22) Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (23) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (24) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
-
- (25) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (26) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (27) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (28) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (29) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (30) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (31) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (32) Adjust anchor cover on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)
-
- (33) Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.)
-
- (34) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (35) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-

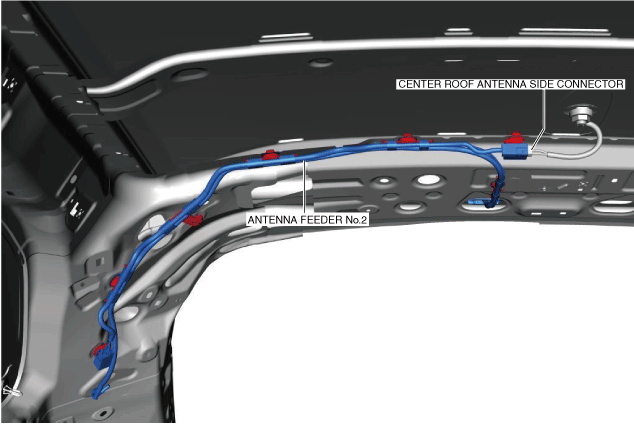

3. Disconnect antenna feeder No.1.
4. Disconnect center roof antenna side connector.

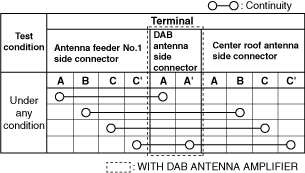

5. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.
-
