CONTROL SYSTEM LOCATION INDEX - MAZDA CX-9 TC 2016

CONTROL SYSTEM LOCATION INDEX

id094000801000

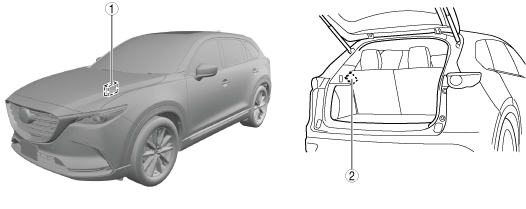

ac9wzw00004263

1

Front body control module (FBCM)

(See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.)

(See FRONT BODY CONTROL MODULE (FBCM) INSPECTION.)

(See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION).)

(See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA).)

2

Rear body control module (RBCM)

(See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.)

(See REAR BODY CONTROL MODULE (RBCM) INSPECTION.)

(See REAR BODY CONTROL MODULE (RBCM) BRACKET REMOVAL/INSTALLATION.)

(See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING READ/WRITE FUNCTION).)

(See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING AS-BUILT DATA).)

(See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
